Introduction

I come from a heavy Windows background, in fact I started my computer experience on an Amstrad however not long after I was using DOS and then Windows 3.11 for Workgroups. So, I’m a heavy Windows head, I’ve deployed all kinds of services and applications within business environments using common technologies such as:

• CISCO/DELL/HP Networking switches and routers
• ISA/TMG/UAG/Checkpoint firewalls
• Palo Alto Firewalls
• Microsoft Windows Client (Windows 3.11-Windows 11)
• Microsoft Windows Server (NT4 – Windows Server 2022)
• Vmware vSphere/ESXi
• Random Linux Security appliances and VPN devices

One thing that I’ve noticed in my travels so far is that Linux deployments in enterprise environments in the back office/corp nets are often appliance based or “black boxes”. This creates a bit of a fun scenario whereby some system administrators and operations teams aren’t particularly comfortable with using UNIX/Linus systems. So, I thought I’d try and write some content to show how to do common tasks using the command line interface (CLI). This isn’t designed as an indepth guide, this is really just to try and give people a view of some of the things that you will need to be aware of. This isn’t mean’t to be “academic” or replace manuals and technical docs so it’s brief and to the point (as far as that is possible).

Major Changes for Windows People

In Windows many things are case insensitive, such as usernames. In UNIX/Linux the file system is case sensitive. Running Uname will error vs uname which will show the OS version. This means some scenarios are case sensitive (file system access is for sure) but also usernames in some systems are as well.

Distributions

Linux comes in a ton of flavours there is even a Hannah Montanna flavour. Common distibutions are:

Red Had Enterprise Linux (RHEL)

• CentOS
• Debian
• Fedora
• Ubuntu
• MINT
• ARCH

Patching and Backporting

Patching and Upgrading in Linux is a bit bit different than Windows because there’s this thing called Backporting:

https://www.redhat.com/en/blog/what-backporting-and-how-does-it-apply-rhel-and-other-red-hat-products

You need to watch out for this as version based enumeration can lead to false positives when conducting asset enumeration and vulnerability identification through version identification. Backporting is where a security fix or patch is backported into an older version of software. So the banner may say version 7.8 however the security fixes may have been incorporated and deployed (the ones that are in 7.9) so there’s some work to do to check and validate (and also demonstrate) things are patched.

Boot Types

• BIOS (BASIC INPUT OUTPUT SYSTEM)
• UEFI

https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/boot-to-uefi-mode-or-legacy-bios-mode

https://wiki.ubuntu.com/UEFI/SecureBoot

Boot Loaders

The most common boot loader is GRUB.

There are others such as:

• BURG
• LILO
• SYSLINUX

https://en.wikipedia.org/wiki/Comparison_of_boot_loaders

File Systems

The common files systems are:

• EXT2
• EXT3
• EXT4

Other file systems include:

• XFS
• ZFS

There are other systems that can also be used.

A common disk encryption system is LUKS:

https://www.redhat.com/sysadmin/disk-encryption-luks

Volume manaement can be handled by Logical Volume Manager (LVM). LVM allows for dynamic volume management (thin of this a bit like using DYNAMIC disks in Windows).

File System Structure

Unlike Windows GNU/Linux systems use files for everything. There’s no concept of the registry like there is in Windows. In Linux configurations, metadata and data are stored in files. Some systems/application may use databases for configurations e.g., mySQL, postgres etc.

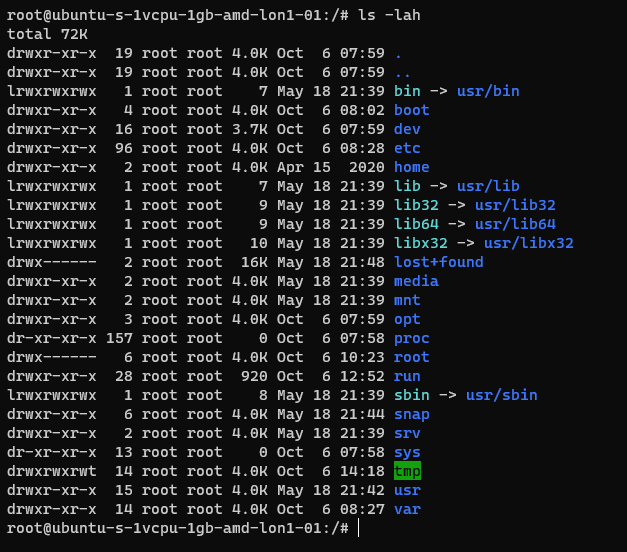

Here’s an example from an Ubuntu system:

The following table is a summary of some common areas:

Path	Purpose	Notes
/	Root
/bin	Binaries for commands (Essential bins)
/dev	Device files/devices
/etc	System wide configuration
/etc/opt	Optional Configurations
/home	Home folders
/lib	Libraries for binaries
/media	Removable Media
/mnt	Temporary File System Mount Points
/opt	Software Packages
/proc	A virtual file system for process and kernel usage
/root	Root users home folder
/run	Run-time variable data for users and daemons
/sbin	System Binaries
/srv
/sys
/tmp	Temporary files
/usr	Read only user data
/usr/bin	Non-essential binaries
/usr/include
/usr/lib32	User Libraries e.g. 32 bit
/usr/local	Host specific data
/usr/sbin	Non essential system binaries
/usr/share	Shared data
/usr/src	Source code and headers
/var	Variable files e.g. log files
/var/cache	Cache
/var/lib/
/var/lock	Lock files
/var/log	Log files e.g. Apache, system etc.
/var/mail	Mailbox data
/var/opt	Optional variable data
/var/run	Variable run time data
/var/spool	Spools for mail and printers
/var/tmp	Temporary files that remain between reboots

Common Shells and Terminal Emulators

• Bash
• Oh My ZSH (ZSH)
• TMUX
• Konsole
• Terminator

Now when using ssh etc. the sessions are not resumable or sharable. So, you will see some cool tools here in the shape of:

• TMUX
• DVTM
• ABDUCO
• SCREEN

Package Managers

In Windows you have the Windows Installer Database and Windows Updates. In modern version of Windows you also have Windows Store and Chocolatey etc.

However, in Linux there is the concept of package managers. Common package managers include:

• DPKG
• RPM

Alongside package managers are dependancy resolvers (thanks Alex for this and other bits!)

• PACMAN
• YUM/DNF
• APT

Common Networking Protocols

• SSH
• SAMBA (Unix SMB/CIFS)
• FTP
• SFTP
• OpenLDAP
• VNC
• RDP

Desktop Window Systems (GUI)

Common guis (Windows Managers) include:

• GNOME
• KDE

There are quite a few of these get your google on!

Key Security Features

• Services
• CHROOT Jails
  • Creates a false root directory for sandboxing
• Pluggable Authenticaiton Modules (PAM)
• Superuser Do/Substitute User Do (SUDO) – Like Windows Runas
• Access Control Lists
• IPTABLES
• UFW (Firewall)
• Audit D
• Malware Detection
  • CLAM AV
• Remote Administration
  • TELNET
  • SSH
  • VNC
  • Remote Desktop Protocol
• SELinux

Common Administration Tasks

I’m using Ubuntu here, some distributions may use slightly different commands e.g. Arch uses PACMAN, Red Hat uses Yum.

Task	command	Notes
Clear the screen	clear	Shortcut CTRL+L
List files	ls
Switch User	su
Run as root/other user	sudo	“super user do” was the traditional name now it’s “substitute user do”
Change directory	cd
Make a directory	mk
Move a file/directory	mv
Remove a file	rm
Remove a directory	rmdir
Copy a file/folder	cp
List OS Version	uname
Read Help	help
Read a manual	man
Update Repositories	apt update
Upgrade packages	apt upgrade
Create an empty file	touch
List directories and files	tree
List disk space/usage	du	List estimated file usage

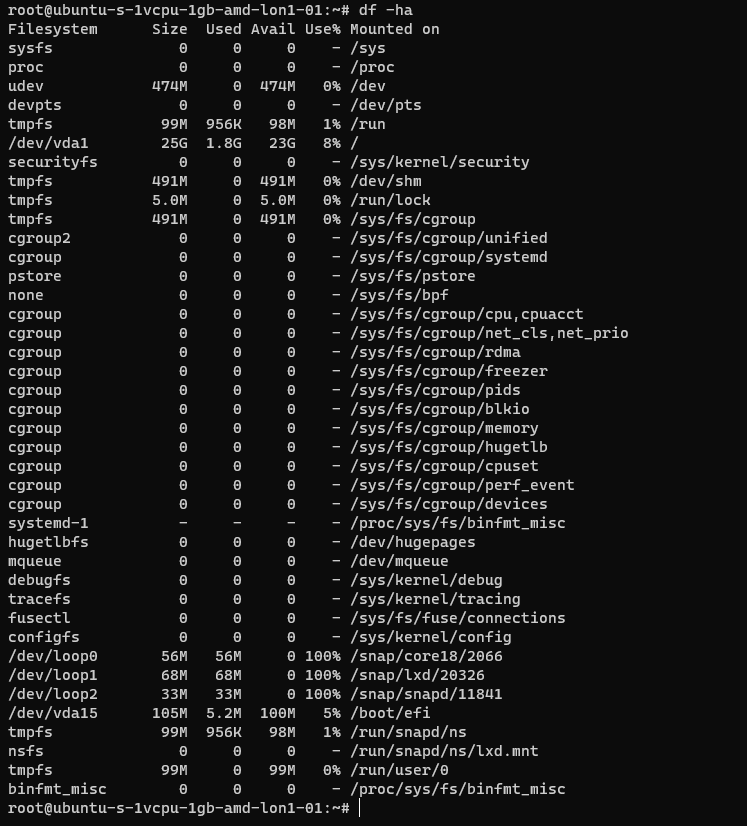

List	df	List file system usage
Change permissions	chmod
Add a user	useradd	This is a very basic utility for creating users that only creates the user object
Add a user	adduser	This has more features and will create things such as the home drive
Delete a user	deluser
Create a group	addgroup
Delete a group	delgroup
Modify a user	usermod
Modify a group	groupmod
List processes	ps	Common is: ps aux
Show the time	date
Kill a process	kill
List suspended processes	jobs
Foreground a process	fg
Edit text	vi or nano
Show the current user	whoami
Show the current date and time	date	date -d now
Display the top of a file	head
Display the end of a file	tail
Display a file in real time	tail -f	tail -f access.log
Print the working directory	pwd
Set a variable	set
List logged on users	w
List logged on users with IP details	who
Send a message to all logged on users	wall
Output data to session	echo
Send message to a user	write
Reboot the system	reboot
Power off the system	poweroff
List the contents of a file	cat
Ssh to another system	[email protected]	You can use -I to specify private keys
See running processes and performance information	top

Scheduled Tasks

Tasks in UNIX/LINUX are managed using CRON.

Parsing and Manipulating Text and Files

• cat
• sed
• awk
• grep
• find
• locate
• sort
• uniq

Daemons

A daemon is a background process, these are commonly used for services. E.g.

• SSHD is the Secure Shell Daemon.
• FTPD is the File Transfer Protocol Daemon.

System Service Control

systemctl list-units –type service

systemctl disable [service] –now

systemctl enable [service] –now

Common Networking Commands

• netstat
• ss
• tcpdump
• ufw
• iptables
• ip a (ifconfig on older systems)
• route
• nslookup
• traceroute

Common Linux Virtualisation Solutions/Platforms

• KVM
• Virtual Box
• ProxMox
• Vmware Workstation
• QEMU

Creating a new User

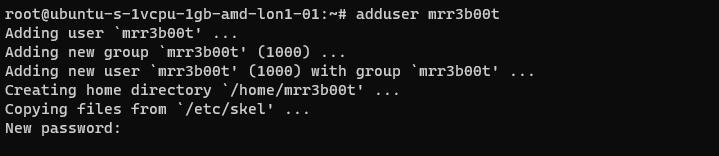

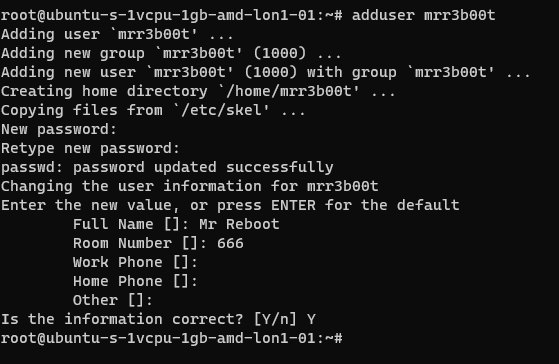

Using adduser we create a new user account. This utility also creates a new group and a home directory.

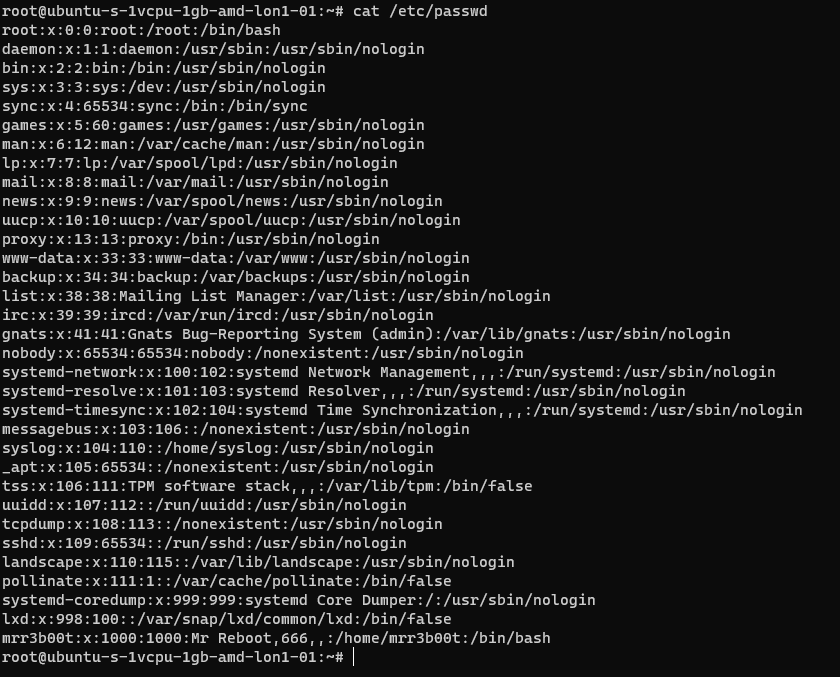

If we cat /etc/passwd we can see the new user:

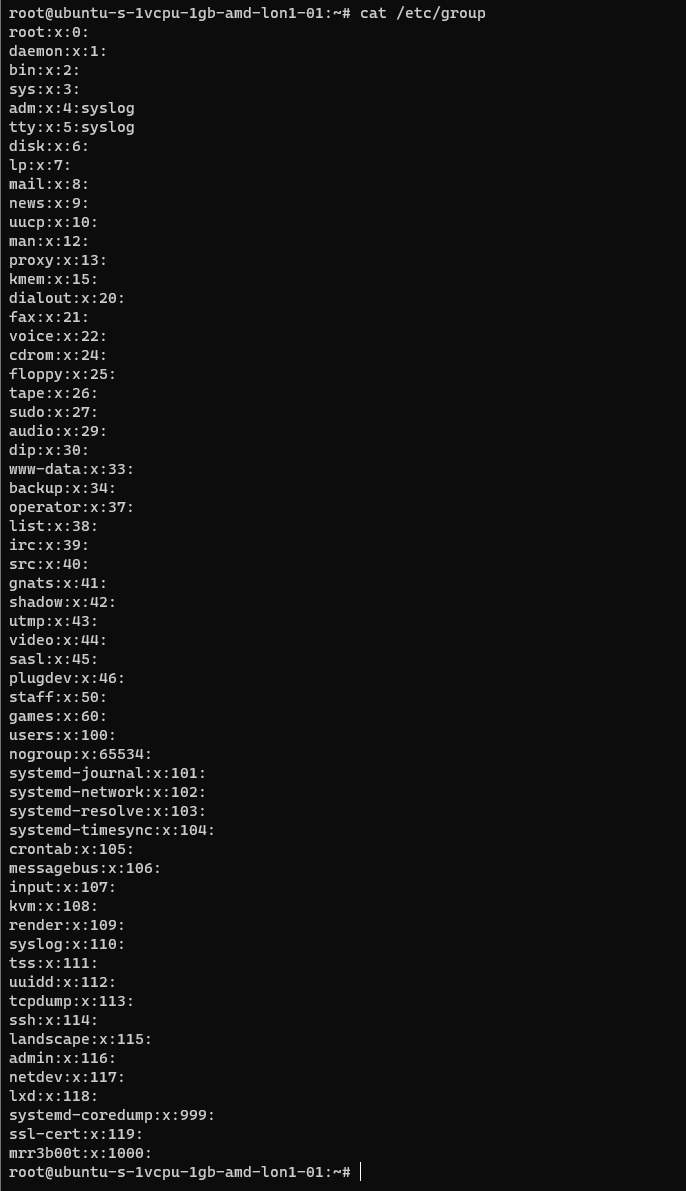

If we cat /etc/group

We can see the new group.

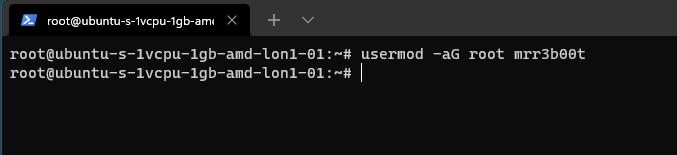

If we wanted to add mrr3b00t to root we would run:

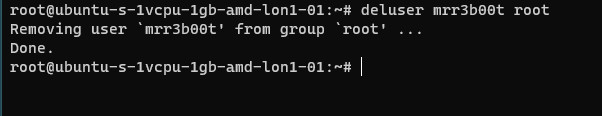

To remove the user from the group “root” we would run:

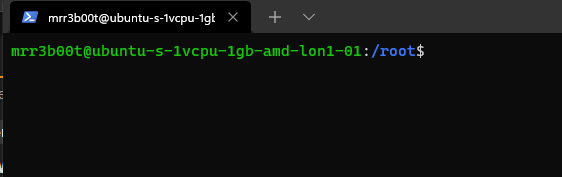

Using “su” we can switch to mRr3b00t:

File Permissions

Now the ACLs on Windows are slightly different. Let’s step through some permissions:

Permission Groups

• Owner
• Group
• All Users/Others

Permission Types

• Read (4)
• Write (2)
• Execute (1)

When we see permissions in Linux we see them in the following format:

[permission flag]rwxrwxrwx 1 owner group

Permission flags can be:

_ = nothing

d = directory

l = symbolic link

SETUID/SETGID and Sticky Bit

s = setuid or setgid (this is shown over [r] rather than in the first character)

t = sticky bit

Permissions are shown as:

Read [r] Write [w] execute[e]

These are important when we consider privilidge escalation. If these bits are set they will look like:

RWSRWSRWT

Or a variation of that pattern with S S and T

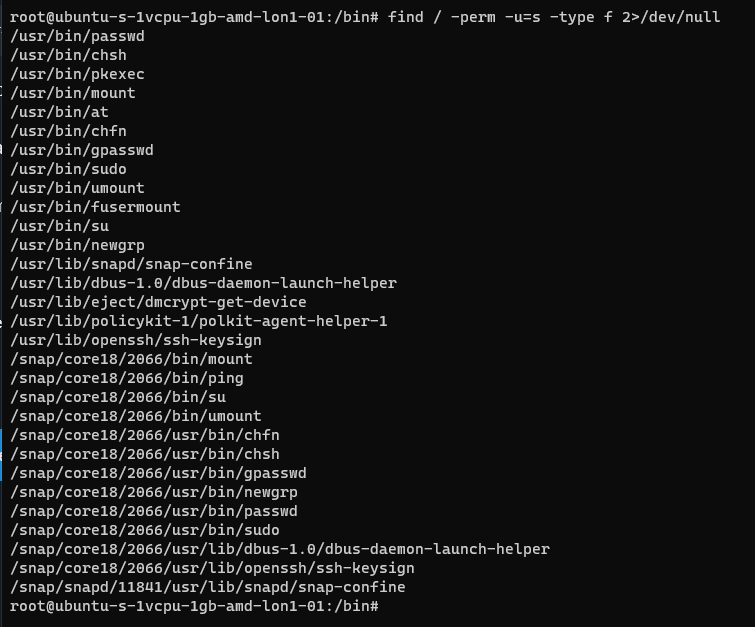

You can search for SUID bits using the following command:

find / -perm -u=s -type f 2>/dev/null

This will find any file (-type f) permissions with the SUID bit set and if there’s any errors e.g. access denied it will output them to /dev/null so you don’t have a screen full of errors.

Without going into detail, some binaries are set to run as root because they need high privilege access. Sometimes there are vulnerabilities in the binaries or custom bins/applications that mean you can use abuse these. On this system here’s all the files with SUID bits set.

This can also be set on directories which will affect files created:

https://web.mit.edu/rhel-doc/3/rhel-rg-en-3/s1-users-groups-private-groups.html

There is a whole subject for this but hopefully this is a quick taster on a gotcha and a potential privesc route.

Going back to our example for permissions:

In this example the /root directory is:

A directory shown by: d

The object owner (root) has read, write, and execute

the group (root) has no access.

Other users have no other permissions are set.

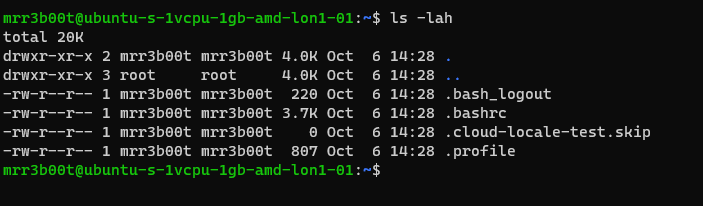

In our demo we are going to switch to mRr3b00t:

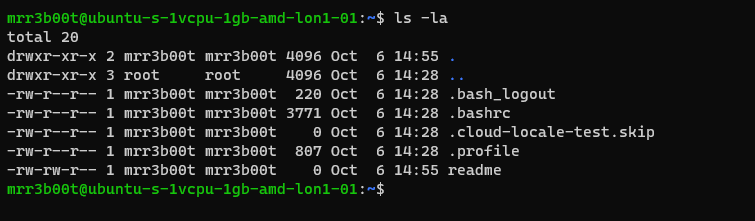

We touch a file “readme”

Now we switch back to root and create a new user called “QWERTY”

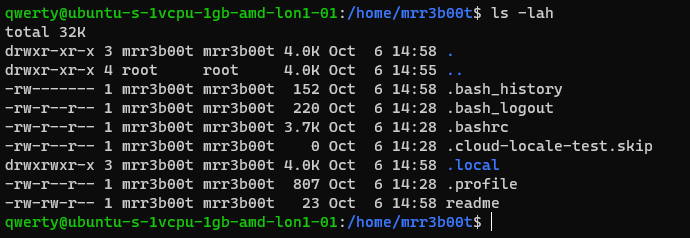

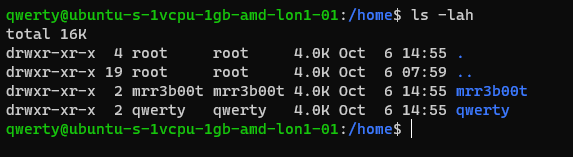

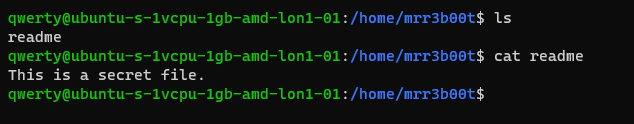

Now as querty we have read access to mRr3b00t’s files.

Why is that?

It’s because OTHER users have the read attribute set.

This won’t apply to all distributions but in Ubuntu this is out of the box defaults.

Let’s fix this (I’m going to set RWX and RW then RWX and RWX so you can see the change)

Here we set:

Owner 7 (rwx)

Group 7 (rw)

Others 0 (nothing)

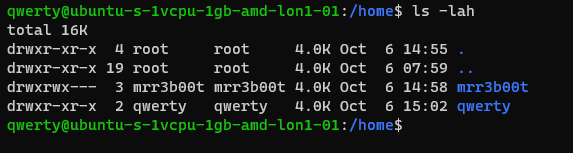

Now we switch to qwerty and we can’t access mrreb00ts files:

We set the following on mRr3b00ts home directory:

chmod 770 /home/mrr3b00t/

Remember, Owner, Group, Others.

We can change the permissions for all users home directory as follows:

sudo chmod 750 /home/*

If our distro isn’t protecting by default, we can set this in the /etc/adduser.conf but you can look that one up!

Scratching the Surface

Ok so we’ve started to scratch the surface and show some of the areas to consider on Linux systems. I started just writing this as I sometimes do, I’m not even sure why but then I figured people might like to read this. So here is the first bash (haha) at trying to write something. I’m going to just post this on the blog and see if people find it useful. I think there’s a better way to carve stuff like this up into exercises. Key things:

• Google is your friend!
• Man pages are your friends!
• VMs in safe environment are your friends!
• –help is your friend!

Let me know if this is useful. Haha It’s useful for me just writing this stuff down, I do as we know, have a memory like a goldfish! If you think there’s something major I’ve missed or anything that I’ve messed up please shout, I woke up at 0300 and I’m like a zombie!

I also might try making a few “how to’s” for common activities because the subject area is huge and what’s probably more useful for people is. “i want to see how to review the apache access logs and how to configure rotation and log shipping etc.”

Introduction

I come from a heavy Windows background, in fact I started my computer experience on an Amstrad however not long after I was using DOS and then Windows 3.11 for Workgroups. So, I’m a heavy Windows head, I’ve deployed all kinds of services and applications within business environments using common technologies such as:

• CISCO/DELL/HP Networking switches and routers
• ISA/TMG/UAG/Checkpoint firewalls
• Palo Alto Firewalls
• Microsoft Windows Client (Windows 3.11-Windows 11)
• Microsoft Windows Server (NT4 – Windows Server 2022)
• Vmware vSphere/ESXi
• Random Linux Security appliances and VPN devices

One thing that I’ve noticed in my travels so far is that Linux deployments in enterprise environments in the back office/corp nets are often appliance based or “black boxes”. This creates a bit of a fun scenario whereby some system administrators and operations teams aren’t particularly comfortable with using UNIX/Linus systems. So, I thought I’d try and write some content to show how to do common tasks using the command line interface (CLI). This isn’t designed as an indepth guide, this is really just to try and give people a view of some of the things that you will need to be aware of. This isn’t mean’t to be “academic” or replace manuals and technical docs so it’s brief and to the point (as far as that is possible).

Major Changes for Windows People

In Windows many things are case insensitive, such as usernames. In UNIX/Linux the file system is case sensitive. Running Uname will error vs uname which will show the OS version. This means some scenarios are case sensitive (file system access is for sure) but also usernames in some systems are as well.

Distributions

Linux comes in a ton of flavours there is even a Hannah Montanna flavour. Common distibutions are:

Red Had Enterprise Linux (RHEL)

• CentOS
• Debian
• Fedora
• Ubuntu
• MINT
• ARCH

Patching and Backporting

Patching and Upgrading in Linux is a bit bit different than Windows because there’s this thing called Backporting:

https://www.redhat.com/en/blog/what-backporting-and-how-does-it-apply-rhel-and-other-red-hat-products

You need to watch out for this as version based enumeration can lead to false positives when conducting asset enumeration and vulnerability identification through version identification. Backporting is where a security fix or patch is backported into an older version of software. So the banner may say version 7.8 however the security fixes may have been incorporated and deployed (the ones that are in 7.9) so there’s some work to do to check and validate (and also demonstrate) things are patched.

Boot Types

• BIOS (BASIC INPUT OUTPUT SYSTEM)
• UEFI

https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/boot-to-uefi-mode-or-legacy-bios-mode

https://wiki.ubuntu.com/UEFI/SecureBoot

Boot Loaders

The most common boot loader is GRUB.

There are others such as:

• BURG
• LILO
• SYSLINUX

https://en.wikipedia.org/wiki/Comparison_of_boot_loaders

File Systems

The common files systems are:

• EXT2
• EXT3
• EXT4

Other file systems include:

• XFS
• ZFS

There are other systems that can also be used.

A common disk encryption system is LUKS:

https://www.redhat.com/sysadmin/disk-encryption-luks

Volume manaement can be handled by Logical Volume Manager (LVM). LVM allows for dynamic volume management (thin of this a bit like using DYNAMIC disks in Windows).

File System Structure

Unlike Windows GNU/Linux systems use files for everything. There’s no concept of the registry like there is in Windows. In Linux configurations, metadata and data are stored in files. Some systems/application may use databases for configurations e.g., mySQL, postgres etc.

Here’s an example from an Ubuntu system:

The following table is a summary of some common areas:

Path	Purpose	Notes
/	Root
/bin	Binaries for commands (Essential bins)
/dev	Device files/devices
/etc	System wide configuration
/etc/opt	Optional Configurations
/home	Home folders
/lib	Libraries for binaries
/media	Removable Media
/mnt	Temporary File System Mount Points
/opt	Software Packages
/proc	A virtual file system for process and kernel usage
/root	Root users home folder
/run	Run-time variable data for users and daemons
/sbin	System Binaries
/srv
/sys
/tmp	Temporary files
/usr	Read only user data
/usr/bin	Non-essential binaries
/usr/include
/usr/lib32	User Libraries e.g. 32 bit
/usr/local	Host specific data
/usr/sbin	Non essential system binaries
/usr/share	Shared data
/usr/src	Source code and headers
/var	Variable files e.g. log files
/var/cache	Cache
/var/lib/
/var/lock	Lock files
/var/log	Log files e.g. Apache, system etc.
/var/mail	Mailbox data
/var/opt	Optional variable data
/var/run	Variable run time data
/var/spool	Spools for mail and printers
/var/tmp	Temporary files that remain between reboots

Common Shells and Terminal Emulators

• Bash
• Oh My ZSH (ZSH)
• TMUX
• Konsole
• Terminator

Now when using ssh etc. the sessions are not resumable or sharable. So, you will see some cool tools here in the shape of:

• TMUX
• DVTM
• ABDUCO
• SCREEN

Package Managers

In Windows you have the Windows Installer Database and Windows Updates. In modern version of Windows you also have Windows Store and Chocolatey etc.

However, in Linux there is the concept of package managers. Common package managers include:

• DPKG
• RPM

Alongside package managers are dependancy resolvers (thanks Alex for this and other bits!)

• PACMAN
• YUM/DNF
• APT

Common Networking Protocols

• SSH
• SAMBA (Unix SMB/CIFS)
• FTP
• SFTP
• OpenLDAP
• VNC
• RDP

Desktop Window Systems (GUI)

Common guis (Windows Managers) include:

• GNOME
• KDE

There are quite a few of these get your google on!

Key Security Features

• Services
• CHROOT Jails
  • Creates a false root directory for sandboxing
• Pluggable Authenticaiton Modules (PAM)
• Superuser Do/Substitute User Do (SUDO) – Like Windows Runas
• Access Control Lists
• IPTABLES
• UFW (Firewall)
• Audit D
• Malware Detection
  • CLAM AV
• Remote Administration
  • TELNET
  • SSH
  • VNC
  • Remote Desktop Protocol
• SELinux

Common Administration Tasks

I’m using Ubuntu here, some distributions may use slightly different commands e.g. Arch uses PACMAN, Red Hat uses Yum.

Task	command	Notes
Clear the screen	clear	Shortcut CTRL+L
List files	ls
Switch User	su
Run as root/other user	sudo	“super user do” was the traditional name now it’s “substitute user do”
Change directory	cd
Make a directory	mk
Move a file/directory	mv
Remove a file	rm
Remove a directory	rmdir
Copy a file/folder	cp
List OS Version	uname
Read Help	help
Read a manual	man
Update Repositories	apt update
Upgrade packages	apt upgrade
Create an empty file	touch
List directories and files	tree
List disk space/usage	du	List estimated file usage
List	df	List file system usage
Change permissions	chmod
Add a user	useradd	This is a very basic utility for creating users that only creates the user object
Add a user	adduser	This has more features and will create things such as the home drive
Delete a user	deluser
Create a group	addgroup
Delete a group	delgroup
Modify a user	usermod
Modify a group	groupmod
List processes	ps	Common is: ps aux
Show the time	date
Kill a process	kill
List suspended processes	jobs
Foreground a process	fg
Edit text	vi or nano
Show the current user	whoami
Show the current date and time	date	date -d now
Display the top of a file	head
Display the end of a file	tail
Display a file in real time	tail -f	tail -f access.log
Print the working directory	pwd
Set a variable	set
List logged on users	w
List logged on users with IP details	who
Send a message to all logged on users	wall
Output data to session	echo
Send message to a user	write
Reboot the system	reboot
Power off the system	poweroff
List the contents of a file	cat
Ssh to another system	[email protected]	You can use -I to specify private keys
See running processes and performance information	top

Scheduled Tasks

Tasks in UNIX/LINUX are managed using CRON.

Parsing and Manipulating Text and Files

• cat
• sed
• awk
• grep
• find
• locate
• sort
• uniq

Daemons

A daemon is a background process, these are commonly used for services. E.g.

• SSHD is the Secure Shell Daemon.
• FTPD is the File Transfer Protocol Daemon.

System Service Control

systemctl list-units –type service

systemctl disable [service] –now

systemctl enable [service] –now

Common Networking Commands

• netstat
• ss
• tcpdump
• ufw
• iptables
• ip a (ifconfig on older systems)
• route
• nslookup
• traceroute

Common Linux Virtualisation Solutions/Platforms

• KVM
• Virtual Box
• ProxMox
• Vmware Workstation
• QEMU

Creating a new User

Using adduser we create a new user account. This utility also creates a new group and a home directory.

If we cat /etc/passwd we can see the new user:

If we cat /etc/group

We can see the new group.

If we wanted to add mrr3b00t to root we would run:

To remove the user from the group “root” we would run:

Using “su” we can switch to mRr3b00t:

File Permissions

Now the ACLs on Windows are slightly different. Let’s step through some permissions:

Permission Groups

• Owner
• Group
• All Users/Others

Permission Types

• Read (4)
• Write (2)
• Execute (1)

When we see permissions in Linux we see them in the following format:

[permission flag]rwxrwxrwx 1 owner group

Permission flags can be:

_ = nothing

d = directory

l = symbolic link

SETUID/SETGID and Sticky Bit

s = setuid or setgid (this is shown over [r] rather than in the first character)

t = sticky bit

Permissions are shown as:

Read [r] Write [w] execute[e]

These are important when we consider privilidge escalation. If these bits are set they will look like:

RWSRWSRWT

Or a variation of that pattern with S S and T

You can search for SUID bits using the following command:

find / -perm -u=s -type f 2>/dev/null

This will find any file (-type f) permissions with the SUID bit set and if there’s any errors e.g. access denied it will output them to /dev/null so you don’t have a screen full of errors.

Without going into detail, some binaries are set to run as root because they need high privilege access. Sometimes there are vulnerabilities in the binaries or custom bins/applications that mean you can use abuse these. On this system here’s all the files with SUID bits set.

This can also be set on directories which will affect files created:

https://web.mit.edu/rhel-doc/3/rhel-rg-en-3/s1-users-groups-private-groups.html

There is a whole subject for this but hopefully this is a quick taster on a gotcha and a potential privesc route.

Going back to our example for permissions:

In this example the /root directory is:

A directory shown by: d

The object owner (root) has read, write, and execute

the group (root) has no access.

Other users have no other permissions are set.

In our demo we are going to switch to mRr3b00t:

We touch a file “readme”

Now we switch back to root and create a new user called “QWERTY”

Now as querty we have read access to mRr3b00t’s files.

Why is that?

It’s because OTHER users have the read attribute set.

This won’t apply to all distributions but in Ubuntu this is out of the box defaults.

Let’s fix this (I’m going to set RWX and RW then RWX and RWX so you can see the change)

Here we set:

Owner 7 (rwx)

Group 7 (rw)

Others 0 (nothing)

Now we switch to qwerty and we can’t access mrreb00ts files:

We set the following on mRr3b00ts home directory:

chmod 770 /home/mrr3b00t/

Remember, Owner, Group, Others.

We can change the permissions for all users home directory as follows:

sudo chmod 750 /home/*

If our distro isn’t protecting by default, we can set this in the /etc/adduser.conf but you can look that one up!

Scratching the Surface

Ok so we’ve started to scratch the surface and show some of the areas to consider on Linux systems. I started just writing this as I sometimes do, I’m not even sure why but then I figured people might like to read this. So here is the first bash (haha) at trying to write something. I’m going to just post this on the blog and see if people find it useful. I think there’s a better way to carve stuff like this up into exercises. Key things:

• Google is your friend!
• Man pages are your friends!
• VMs in safe environment are your friends!
• –help is your friend!

Let me know if this is useful. Haha It’s useful for me just writing this stuff down, I do as we know, have a memory like a goldfish! If you think there’s something major I’ve missed or anything that I’ve messed up please shout, I woke up at 0300 and I’m like a zombie!

I also might try making a few “how to’s” for common activities because the subject area is huge and what’s probably more useful for people is. “i want to see how to review the apache access logs and how to configure rotation and log shipping etc.”

Introduction

I come from a heavy Windows background, in fact I started my computer experience on an Amstrad however not long after I was using DOS and then Windows 3.11 for Workgroups. So, I’m a heavy Windows head, I’ve deployed all kinds of services and applications within business environments using common technologies such as:

• CISCO/DELL/HP Networking switches and routers
• ISA/TMG/UAG/Checkpoint firewalls
• Palo Alto Firewalls
• Microsoft Windows Client (Windows 3.11-Windows 11)
• Microsoft Windows Server (NT4 – Windows Server 2022)
• Vmware vSphere/ESXi
• Random Linux Security appliances and VPN devices

One thing that I’ve noticed in my travels so far is that Linux deployments in enterprise environments in the back office/corp nets are often appliance based or “black boxes”. This creates a bit of a fun scenario whereby some system administrators and operations teams aren’t particularly comfortable with using UNIX/Linus systems. So, I thought I’d try and write some content to show how to do common tasks using the command line interface (CLI). This isn’t designed as an indepth guide, this is really just to try and give people a view of some of the things that you will need to be aware of. This isn’t mean’t to be “academic” or replace manuals and technical docs so it’s brief and to the point (as far as that is possible).

Major Changes for Windows People

In Windows many things are case insensitive, such as usernames. In UNIX/Linux the file system is case sensitive. Running Uname will error vs uname which will show the OS version. This means some scenarios are case sensitive (file system access is for sure) but also usernames in some systems are as well.

Distributions

Linux comes in a ton of flavours there is even a Hannah Montanna flavour. Common distibutions are:

Red Had Enterprise Linux (RHEL)

• CentOS
• Debian
• Fedora
• Ubuntu
• MINT
• ARCH

Patching and Backporting

Patching and Upgrading in Linux is a bit bit different than Windows because there’s this thing called Backporting:

https://www.redhat.com/en/blog/what-backporting-and-how-does-it-apply-rhel-and-other-red-hat-products

You need to watch out for this as version based enumeration can lead to false positives when conducting asset enumeration and vulnerability identification through version identification. Backporting is where a security fix or patch is backported into an older version of software. So the banner may say version 7.8 however the security fixes may have been incorporated and deployed (the ones that are in 7.9) so there’s some work to do to check and validate (and also demonstrate) things are patched.

Boot Types

• BIOS (BASIC INPUT OUTPUT SYSTEM)
• UEFI

https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/boot-to-uefi-mode-or-legacy-bios-mode

https://wiki.ubuntu.com/UEFI/SecureBoot

Boot Loaders

The most common boot loader is GRUB.

There are others such as:

• BURG
• LILO
• SYSLINUX

https://en.wikipedia.org/wiki/Comparison_of_boot_loaders

File Systems

The common files systems are:

• EXT2
• EXT3
• EXT4

Other file systems include:

• XFS
• ZFS

There are other systems that can also be used.

A common disk encryption system is LUKS:

https://www.redhat.com/sysadmin/disk-encryption-luks

Volume manaement can be handled by Logical Volume Manager (LVM). LVM allows for dynamic volume management (thin of this a bit like using DYNAMIC disks in Windows).

File System Structure

Unlike Windows GNU/Linux systems use files for everything. There’s no concept of the registry like there is in Windows. In Linux configurations, metadata and data are stored in files. Some systems/application may use databases for configurations e.g., mySQL, postgres etc.

Here’s an example from an Ubuntu system:

The following table is a summary of some common areas:

Path	Purpose	Notes
/	Root
/bin	Binaries for commands (Essential bins)
/dev	Device files/devices
/etc	System wide configuration
/etc/opt	Optional Configurations
/home	Home folders
/lib	Libraries for binaries
/media	Removable Media
/mnt	Temporary File System Mount Points
/opt	Software Packages
/proc	A virtual file system for process and kernel usage
/root	Root users home folder
/run	Run-time variable data for users and daemons
/sbin	System Binaries
/srv
/sys
/tmp	Temporary files
/usr	Read only user data
/usr/bin	Non-essential binaries
/usr/include
/usr/lib32	User Libraries e.g. 32 bit
/usr/local	Host specific data
/usr/sbin	Non essential system binaries
/usr/share	Shared data
/usr/src	Source code and headers
/var	Variable files e.g. log files
/var/cache	Cache
/var/lib/
/var/lock	Lock files
/var/log	Log files e.g. Apache, system etc.
/var/mail	Mailbox data
/var/opt	Optional variable data
/var/run	Variable run time data
/var/spool	Spools for mail and printers
/var/tmp	Temporary files that remain between reboots

Common Shells and Terminal Emulators

• Bash
• Oh My ZSH (ZSH)
• TMUX
• Konsole
• Terminator

Now when using ssh etc. the sessions are not resumable or sharable. So, you will see some cool tools here in the shape of:

• TMUX
• DVTM
• ABDUCO
• SCREEN

Package Managers

In Windows you have the Windows Installer Database and Windows Updates. In modern version of Windows you also have Windows Store and Chocolatey etc.

However, in Linux there is the concept of package managers. Common package managers include:

• DPKG
• RPM

Alongside package managers are dependancy resolvers (thanks Alex for this and other bits!)

• PACMAN
• YUM/DNF
• APT

Common Networking Protocols

• SSH
• SAMBA (Unix SMB/CIFS)
• FTP
• SFTP
• OpenLDAP
• VNC
• RDP

Desktop Window Systems (GUI)

Common guis (Windows Managers) include:

• GNOME
• KDE

There are quite a few of these get your google on!

Key Security Features

• Services
• CHROOT Jails
  • Creates a false root directory for sandboxing
• Pluggable Authenticaiton Modules (PAM)
• Superuser Do/Substitute User Do (SUDO) – Like Windows Runas
• Access Control Lists
• IPTABLES
• UFW (Firewall)
• Audit D
• Malware Detection
  • CLAM AV
• Remote Administration
  • TELNET
  • SSH
  • VNC
  • Remote Desktop Protocol
• SELinux

Common Administration Tasks

I’m using Ubuntu here, some distributions may use slightly different commands e.g. Arch uses PACMAN, Red Hat uses Yum.

Task	command	Notes
Clear the screen	clear	Shortcut CTRL+L
List files	ls
Switch User	su
Run as root/other user	sudo	“super user do” was the traditional name now it’s “substitute user do”
Change directory	cd
Make a directory	mk
Move a file/directory	mv
Remove a file	rm
Remove a directory	rmdir
Copy a file/folder	cp
List OS Version	uname
Read Help	help
Read a manual	man
Update Repositories	apt update
Upgrade packages	apt upgrade
Create an empty file	touch
List directories and files	tree
List disk space/usage	du	List estimated file usage
List	df	List file system usage
Change permissions	chmod
Add a user	useradd	This is a very basic utility for creating users that only creates the user object
Add a user	adduser	This has more features and will create things such as the home drive
Delete a user	deluser
Create a group	addgroup
Delete a group	delgroup
Modify a user	usermod
Modify a group	groupmod
List processes	ps	Common is: ps aux
Show the time	date
Kill a process	kill
List suspended processes	jobs
Foreground a process	fg
Edit text	vi or nano
Show the current user	whoami
Show the current date and time	date	date -d now
Display the top of a file	head
Display the end of a file	tail
Display a file in real time	tail -f	tail -f access.log
Print the working directory	pwd
Set a variable	set
List logged on users	w
List logged on users with IP details	who
Send a message to all logged on users	wall
Output data to session	echo
Send message to a user	write
Reboot the system	reboot
Power off the system	poweroff
List the contents of a file	cat
Ssh to another system	[email protected]	You can use -I to specify private keys
See running processes and performance information	top

Scheduled Tasks

Tasks in UNIX/LINUX are managed using CRON.

Parsing and Manipulating Text and Files

• cat
• sed
• awk
• grep
• find
• locate
• sort
• uniq

Daemons

A daemon is a background process, these are commonly used for services. E.g.

• SSHD is the Secure Shell Daemon.
• FTPD is the File Transfer Protocol Daemon.

System Service Control

systemctl list-units –type service

systemctl disable [service] –now

systemctl enable [service] –now

Common Networking Commands

• netstat
• ss
• tcpdump
• ufw
• iptables
• ip a (ifconfig on older systems)
• route
• nslookup
• traceroute

Common Linux Virtualisation Solutions/Platforms

• KVM
• Virtual Box
• ProxMox
• Vmware Workstation
• QEMU

Creating a new User

Using adduser we create a new user account. This utility also creates a new group and a home directory.

If we cat /etc/passwd we can see the new user:

If we cat /etc/group

We can see the new group.

If we wanted to add mrr3b00t to root we would run:

To remove the user from the group “root” we would run:

Using “su” we can switch to mRr3b00t:

File Permissions

Now the ACLs on Windows are slightly different. Let’s step through some permissions:

Permission Groups

• Owner
• Group
• All Users/Others

Permission Types

• Read (4)
• Write (2)
• Execute (1)

When we see permissions in Linux we see them in the following format:

[permission flag]rwxrwxrwx 1 owner group

Permission flags can be:

_ = nothing

d = directory

l = symbolic link

SETUID/SETGID and Sticky Bit

s = setuid or setgid (this is shown over [r] rather than in the first character)

t = sticky bit

Permissions are shown as:

Read [r] Write [w] execute[e]

These are important when we consider privilidge escalation. If these bits are set they will look like:

RWSRWSRWT

Or a variation of that pattern with S S and T

You can search for SUID bits using the following command:

find / -perm -u=s -type f 2>/dev/null

This will find any file (-type f) permissions with the SUID bit set and if there’s any errors e.g. access denied it will output them to /dev/null so you don’t have a screen full of errors.

Without going into detail, some binaries are set to run as root because they need high privilege access. Sometimes there are vulnerabilities in the binaries or custom bins/applications that mean you can use abuse these. On this system here’s all the files with SUID bits set.

This can also be set on directories which will affect files created:

https://web.mit.edu/rhel-doc/3/rhel-rg-en-3/s1-users-groups-private-groups.html

There is a whole subject for this but hopefully this is a quick taster on a gotcha and a potential privesc route.

Going back to our example for permissions:

In this example the /root directory is:

A directory shown by: d

The object owner (root) has read, write, and execute

the group (root) has no access.

Other users have no other permissions are set.

In our demo we are going to switch to mRr3b00t:

We touch a file “readme”

Now we switch back to root and create a new user called “QWERTY”

Now as querty we have read access to mRr3b00t’s files.

Why is that?

It’s because OTHER users have the read attribute set.

This won’t apply to all distributions but in Ubuntu this is out of the box defaults.

Let’s fix this (I’m going to set RWX and RW then RWX and RWX so you can see the change)

Here we set:

Owner 7 (rwx)

Group 7 (rw)

Others 0 (nothing)

Now we switch to qwerty and we can’t access mrreb00ts files:

We set the following on mRr3b00ts home directory:

chmod 770 /home/mrr3b00t/

Remember, Owner, Group, Others.

We can change the permissions for all users home directory as follows:

sudo chmod 750 /home/*

If our distro isn’t protecting by default, we can set this in the /etc/adduser.conf but you can look that one up!

Scratching the Surface

Ok so we’ve started to scratch the surface and show some of the areas to consider on Linux systems. I started just writing this as I sometimes do, I’m not even sure why but then I figured people might like to read this. So here is the first bash (haha) at trying to write something. I’m going to just post this on the blog and see if people find it useful. I think there’s a better way to carve stuff like this up into exercises. Key things:

• Google is your friend!
• Man pages are your friends!
• VMs in safe environment are your friends!
• –help is your friend!

Let me know if this is useful. Haha It’s useful for me just writing this stuff down, I do as we know, have a memory like a goldfish! If you think there’s something major I’ve missed or anything that I’ve messed up please shout, I woke up at 0300 and I’m like a zombie!

I also might try making a few “how to’s” for common activities because the subject area is huge and what’s probably more useful for people is. “i want to see how to review the apache access logs and how to configure rotation and log shipping etc.”

Introduction

I come from a heavy Windows background, in fact I started my computer experience on an Amstrad however not long after I was using DOS and then Windows 3.11 for Workgroups. So, I’m a heavy Windows head, I’ve deployed all kinds of services and applications within business environments using common technologies such as:

• CISCO/DELL/HP Networking switches and routers
• ISA/TMG/UAG/Checkpoint firewalls
• Palo Alto Firewalls
• Microsoft Windows Client (Windows 3.11-Windows 11)
• Microsoft Windows Server (NT4 – Windows Server 2022)
• Vmware vSphere/ESXi
• Random Linux Security appliances and VPN devices

One thing that I’ve noticed in my travels so far is that Linux deployments in enterprise environments in the back office/corp nets are often appliance based or “black boxes”. This creates a bit of a fun scenario whereby some system administrators and operations teams aren’t particularly comfortable with using UNIX/Linus systems. So, I thought I’d try and write some content to show how to do common tasks using the command line interface (CLI). This isn’t designed as an indepth guide, this is really just to try and give people a view of some of the things that you will need to be aware of. This isn’t mean’t to be “academic” or replace manuals and technical docs so it’s brief and to the point (as far as that is possible).

Major Changes for Windows People

In Windows many things are case insensitive, such as usernames. In UNIX/Linux the file system is case sensitive. Running Uname will error vs uname which will show the OS version. This means some scenarios are case sensitive (file system access is for sure) but also usernames in some systems are as well.

Distributions

Linux comes in a ton of flavours there is even a Hannah Montanna flavour. Common distibutions are:

Red Had Enterprise Linux (RHEL)

• CentOS
• Debian
• Fedora
• Ubuntu
• MINT
• ARCH

Patching and Backporting

Patching and Upgrading in Linux is a bit bit different than Windows because there’s this thing called Backporting:

https://www.redhat.com/en/blog/what-backporting-and-how-does-it-apply-rhel-and-other-red-hat-products

You need to watch out for this as version based enumeration can lead to false positives when conducting asset enumeration and vulnerability identification through version identification. Backporting is where a security fix or patch is backported into an older version of software. So the banner may say version 7.8 however the security fixes may have been incorporated and deployed (the ones that are in 7.9) so there’s some work to do to check and validate (and also demonstrate) things are patched.

Boot Types

• BIOS (BASIC INPUT OUTPUT SYSTEM)
• UEFI

https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/boot-to-uefi-mode-or-legacy-bios-mode

https://wiki.ubuntu.com/UEFI/SecureBoot

Boot Loaders

The most common boot loader is GRUB.

There are others such as:

• BURG
• LILO
• SYSLINUX

https://en.wikipedia.org/wiki/Comparison_of_boot_loaders

File Systems

The common files systems are:

• EXT2
• EXT3
• EXT4

Other file systems include:

• XFS
• ZFS

There are other systems that can also be used.

A common disk encryption system is LUKS:

https://www.redhat.com/sysadmin/disk-encryption-luks

Volume manaement can be handled by Logical Volume Manager (LVM). LVM allows for dynamic volume management (thin of this a bit like using DYNAMIC disks in Windows).

File System Structure

Unlike Windows GNU/Linux systems use files for everything. There’s no concept of the registry like there is in Windows. In Linux configurations, metadata and data are stored in files. Some systems/application may use databases for configurations e.g., mySQL, postgres etc.

Here’s an example from an Ubuntu system:

The following table is a summary of some common areas:

Path	Purpose	Notes
/	Root
/bin	Binaries for commands (Essential bins)
/dev	Device files/devices
/etc	System wide configuration
/etc/opt	Optional Configurations
/home	Home folders
/lib	Libraries for binaries
/media	Removable Media
/mnt	Temporary File System Mount Points
/opt	Software Packages
/proc	A virtual file system for process and kernel usage
/root	Root users home folder
/run	Run-time variable data for users and daemons
/sbin	System Binaries
/srv
/sys
/tmp	Temporary files
/usr	Read only user data
/usr/bin	Non-essential binaries
/usr/include
/usr/lib32	User Libraries e.g. 32 bit
/usr/local	Host specific data
/usr/sbin	Non essential system binaries
/usr/share	Shared data
/usr/src	Source code and headers
/var	Variable files e.g. log files
/var/cache	Cache
/var/lib/
/var/lock	Lock files
/var/log	Log files e.g. Apache, system etc.
/var/mail	Mailbox data
/var/opt	Optional variable data
/var/run	Variable run time data
/var/spool	Spools for mail and printers
/var/tmp	Temporary files that remain between reboots

Common Shells and Terminal Emulators

• Bash
• Oh My ZSH (ZSH)
• TMUX
• Konsole
• Terminator

Now when using ssh etc. the sessions are not resumable or sharable. So, you will see some cool tools here in the shape of:

• TMUX
• DVTM
• ABDUCO
• SCREEN

Package Managers

In Windows you have the Windows Installer Database and Windows Updates. In modern version of Windows you also have Windows Store and Chocolatey etc.

However, in Linux there is the concept of package managers. Common package managers include:

• DPKG
• RPM

Alongside package managers are dependancy resolvers (thanks Alex for this and other bits!)

• PACMAN
• YUM/DNF
• APT

Common Networking Protocols

• SSH
• SAMBA (Unix SMB/CIFS)
• FTP
• SFTP
• OpenLDAP
• VNC
• RDP

Desktop Window Systems (GUI)

Common guis (Windows Managers) include:

• GNOME
• KDE

There are quite a few of these get your google on!

Key Security Features

• Services
• CHROOT Jails
  • Creates a false root directory for sandboxing
• Pluggable Authenticaiton Modules (PAM)
• Superuser Do/Substitute User Do (SUDO) – Like Windows Runas
• Access Control Lists
• IPTABLES
• UFW (Firewall)
• Audit D
• Malware Detection
  • CLAM AV
• Remote Administration
  • TELNET
  • SSH
  • VNC
  • Remote Desktop Protocol
• SELinux

Common Administration Tasks

I’m using Ubuntu here, some distributions may use slightly different commands e.g. Arch uses PACMAN, Red Hat uses Yum.

Task	command	Notes
Clear the screen	clear	Shortcut CTRL+L
List files	ls
Switch User	su
Run as root/other user	sudo	“super user do” was the traditional name now it’s “substitute user do”
Change directory	cd
Make a directory	mk
Move a file/directory	mv
Remove a file	rm
Remove a directory	rmdir
Copy a file/folder	cp
List OS Version	uname
Read Help	help
Read a manual	man
Update Repositories	apt update
Upgrade packages	apt upgrade
Create an empty file	touch
List directories and files	tree
List disk space/usage	du	List estimated file usage
List	df	List file system usage
Change permissions	chmod
Add a user	useradd	This is a very basic utility for creating users that only creates the user object
Add a user	adduser	This has more features and will create things such as the home drive
Delete a user	deluser
Create a group	addgroup
Delete a group	delgroup
Modify a user	usermod
Modify a group	groupmod
List processes	ps	Common is: ps aux
Show the time	date
Kill a process	kill
List suspended processes	jobs
Foreground a process	fg
Edit text	vi or nano
Show the current user	whoami
Show the current date and time	date	date -d now
Display the top of a file	head
Display the end of a file	tail
Display a file in real time	tail -f	tail -f access.log
Print the working directory	pwd
Set a variable	set
List logged on users	w
List logged on users with IP details	who
Send a message to all logged on users	wall
Output data to session	echo
Send message to a user	write
Reboot the system	reboot
Power off the system	poweroff
List the contents of a file	cat
Ssh to another system	[email protected]	You can use -I to specify private keys
See running processes and performance information	top

Scheduled Tasks

Tasks in UNIX/LINUX are managed using CRON.

Parsing and Manipulating Text and Files

• cat
• sed
• awk
• grep
• find
• locate
• sort
• uniq

Daemons

A daemon is a background process, these are commonly used for services. E.g.

• SSHD is the Secure Shell Daemon.
• FTPD is the File Transfer Protocol Daemon.

System Service Control

systemctl list-units –type service

systemctl disable [service] –now

systemctl enable [service] –now

Common Networking Commands

• netstat
• ss
• tcpdump
• ufw
• iptables
• ip a (ifconfig on older systems)
• route
• nslookup
• traceroute

Common Linux Virtualisation Solutions/Platforms

• KVM
• Virtual Box
• ProxMox
• Vmware Workstation
• QEMU

Creating a new User

Using adduser we create a new user account. This utility also creates a new group and a home directory.

If we cat /etc/passwd we can see the new user:

If we cat /etc/group

We can see the new group.

If we wanted to add mrr3b00t to root we would run:

To remove the user from the group “root” we would run:

Using “su” we can switch to mRr3b00t:

File Permissions

Now the ACLs on Windows are slightly different. Let’s step through some permissions:

Permission Groups

• Owner
• Group
• All Users/Others

Permission Types

• Read (4)
• Write (2)
• Execute (1)

When we see permissions in Linux we see them in the following format:

[permission flag]rwxrwxrwx 1 owner group

Permission flags can be:

_ = nothing

d = directory

l = symbolic link

SETUID/SETGID and Sticky Bit

s = setuid or setgid (this is shown over [r] rather than in the first character)

t = sticky bit

Permissions are shown as:

Read [r] Write [w] execute[e]

These are important when we consider privilidge escalation. If these bits are set they will look like:

RWSRWSRWT

Or a variation of that pattern with S S and T

You can search for SUID bits using the following command:

find / -perm -u=s -type f 2>/dev/null

This will find any file (-type f) permissions with the SUID bit set and if there’s any errors e.g. access denied it will output them to /dev/null so you don’t have a screen full of errors.

Without going into detail, some binaries are set to run as root because they need high privilege access. Sometimes there are vulnerabilities in the binaries or custom bins/applications that mean you can use abuse these. On this system here’s all the files with SUID bits set.

This can also be set on directories which will affect files created:

https://web.mit.edu/rhel-doc/3/rhel-rg-en-3/s1-users-groups-private-groups.html

There is a whole subject for this but hopefully this is a quick taster on a gotcha and a potential privesc route.

Going back to our example for permissions:

In this example the /root directory is:

A directory shown by: d

The object owner (root) has read, write, and execute

the group (root) has no access.

Other users have no other permissions are set.

In our demo we are going to switch to mRr3b00t:

We touch a file “readme”

Now we switch back to root and create a new user called “QWERTY”

Now as querty we have read access to mRr3b00t’s files.

Why is that?

It’s because OTHER users have the read attribute set.

This won’t apply to all distributions but in Ubuntu this is out of the box defaults.

Let’s fix this (I’m going to set RWX and RW then RWX and RWX so you can see the change)

Here we set:

Owner 7 (rwx)

Group 7 (rw)

Others 0 (nothing)

Now we switch to qwerty and we can’t access mrreb00ts files:

We set the following on mRr3b00ts home directory:

chmod 770 /home/mrr3b00t/

Remember, Owner, Group, Others.

We can change the permissions for all users home directory as follows:

sudo chmod 750 /home/*

If our distro isn’t protecting by default, we can set this in the /etc/adduser.conf but you can look that one up!

Scratching the Surface

Ok so we’ve started to scratch the surface and show some of the areas to consider on Linux systems. I started just writing this as I sometimes do, I’m not even sure why but then I figured people might like to read this. So here is the first bash (haha) at trying to write something. I’m going to just post this on the blog and see if people find it useful. I think there’s a better way to carve stuff like this up into exercises. Key things:

• Google is your friend!
• Man pages are your friends!
• VMs in safe environment are your friends!
• –help is your friend!

Let me know if this is useful. Haha It’s useful for me just writing this stuff down, I do as we know, have a memory like a goldfish! If you think there’s something major I’ve missed or anything that I’ve messed up please shout, I woke up at 0300 and I’m like a zombie!

I also might try making a few “how to’s” for common activities because the subject area is huge and what’s probably more useful for people is. “i want to see how to review the apache access logs and how to configure rotation and log shipping etc.”

Introduction

I come from a heavy Windows background, in fact I started my computer experience on an Amstrad however not long after I was using DOS and then Windows 3.11 for Workgroups. So, I’m a heavy Windows head, I’ve deployed all kinds of services and applications within business environments using common technologies such as:

• CISCO/DELL/HP Networking switches and routers
• ISA/TMG/UAG/Checkpoint firewalls
• Palo Alto Firewalls
• Microsoft Windows Client (Windows 3.11-Windows 11)
• Microsoft Windows Server (NT4 – Windows Server 2022)
• Vmware vSphere/ESXi
• Random Linux Security appliances and VPN devices

One thing that I’ve noticed in my travels so far is that Linux deployments in enterprise environments in the back office/corp nets are often appliance based or “black boxes”. This creates a bit of a fun scenario whereby some system administrators and operations teams aren’t particularly comfortable with using UNIX/Linus systems. So, I thought I’d try and write some content to show how to do common tasks using the command line interface (CLI). This isn’t designed as an indepth guide, this is really just to try and give people a view of some of the things that you will need to be aware of. This isn’t mean’t to be “academic” or replace manuals and technical docs so it’s brief and to the point (as far as that is possible).

Major Changes for Windows People

In Windows many things are case insensitive, such as usernames. In UNIX/Linux the file system is case sensitive. Running Uname will error vs uname which will show the OS version. This means some scenarios are case sensitive (file system access is for sure) but also usernames in some systems are as well.

Distributions

Linux comes in a ton of flavours there is even a Hannah Montanna flavour. Common distibutions are:

Red Had Enterprise Linux (RHEL)

• CentOS
• Debian
• Fedora
• Ubuntu
• MINT
• ARCH

Patching and Backporting

Patching and Upgrading in Linux is a bit bit different than Windows because there’s this thing called Backporting:

https://www.redhat.com/en/blog/what-backporting-and-how-does-it-apply-rhel-and-other-red-hat-products

You need to watch out for this as version based enumeration can lead to false positives when conducting asset enumeration and vulnerability identification through version identification. Backporting is where a security fix or patch is backported into an older version of software. So the banner may say version 7.8 however the security fixes may have been incorporated and deployed (the ones that are in 7.9) so there’s some work to do to check and validate (and also demonstrate) things are patched.

Boot Types

• BIOS (BASIC INPUT OUTPUT SYSTEM)
• UEFI

https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/boot-to-uefi-mode-or-legacy-bios-mode

https://wiki.ubuntu.com/UEFI/SecureBoot

Boot Loaders

The most common boot loader is GRUB.

There are others such as:

• BURG
• LILO
• SYSLINUX

https://en.wikipedia.org/wiki/Comparison_of_boot_loaders

File Systems

The common files systems are:

• EXT2
• EXT3
• EXT4

Other file systems include:

• XFS
• ZFS

There are other systems that can also be used.

A common disk encryption system is LUKS:

https://www.redhat.com/sysadmin/disk-encryption-luks

Volume manaement can be handled by Logical Volume Manager (LVM). LVM allows for dynamic volume management (thin of this a bit like using DYNAMIC disks in Windows).

File System Structure

Unlike Windows GNU/Linux systems use files for everything. There’s no concept of the registry like there is in Windows. In Linux configurations, metadata and data are stored in files. Some systems/application may use databases for configurations e.g., mySQL, postgres etc.

Here’s an example from an Ubuntu system:

The following table is a summary of some common areas:

Path	Purpose	Notes
/	Root
/bin	Binaries for commands (Essential bins)
/dev	Device files/devices
/etc	System wide configuration
/etc/opt	Optional Configurations
/home	Home folders
/lib	Libraries for binaries
/media	Removable Media
/mnt	Temporary File System Mount Points
/opt	Software Packages
/proc	A virtual file system for process and kernel usage
/root	Root users home folder
/run	Run-time variable data for users and daemons
/sbin	System Binaries
/srv
/sys
/tmp	Temporary files
/usr	Read only user data
/usr/bin	Non-essential binaries
/usr/include
/usr/lib32	User Libraries e.g. 32 bit
/usr/local	Host specific data
/usr/sbin	Non essential system binaries
/usr/share	Shared data
/usr/src	Source code and headers
/var	Variable files e.g. log files
/var/cache	Cache
/var/lib/
/var/lock	Lock files
/var/log	Log files e.g. Apache, system etc.
/var/mail	Mailbox data
/var/opt	Optional variable data
/var/run	Variable run time data
/var/spool	Spools for mail and printers
/var/tmp	Temporary files that remain between reboots

Common Shells and Terminal Emulators

• Bash
• Oh My ZSH (ZSH)
• TMUX
• Konsole
• Terminator

Now when using ssh etc. the sessions are not resumable or sharable. So, you will see some cool tools here in the shape of:

• TMUX
• DVTM
• ABDUCO
• SCREEN

Package Managers

In Windows you have the Windows Installer Database and Windows Updates. In modern version of Windows you also have Windows Store and Chocolatey etc.

However, in Linux there is the concept of package managers. Common package managers include:

• DPKG
• RPM

Alongside package managers are dependancy resolvers (thanks Alex for this and other bits!)

• PACMAN
• YUM/DNF
• APT

Common Networking Protocols

• SSH
• SAMBA (Unix SMB/CIFS)
• FTP
• SFTP
• OpenLDAP
• VNC
• RDP

Desktop Window Systems (GUI)

Common guis (Windows Managers) include:

• GNOME
• KDE

There are quite a few of these get your google on!

Key Security Features

• Services
• CHROOT Jails
  • Creates a false root directory for sandboxing
• Pluggable Authenticaiton Modules (PAM)
• Superuser Do/Substitute User Do (SUDO) – Like Windows Runas
• Access Control Lists
• IPTABLES
• UFW (Firewall)
• Audit D
• Malware Detection
  • CLAM AV
• Remote Administration
  • TELNET
  • SSH
  • VNC
  • Remote Desktop Protocol
• SELinux

Common Administration Tasks

I’m using Ubuntu here, some distributions may use slightly different commands e.g. Arch uses PACMAN, Red Hat uses Yum.

Task	command	Notes
Clear the screen	clear	Shortcut CTRL+L
List files	ls
Switch User	su
Run as root/other user	sudo	“super user do” was the traditional name now it’s “substitute user do”
Change directory	cd
Make a directory	mk
Move a file/directory	mv
Remove a file	rm
Remove a directory	rmdir
Copy a file/folder	cp
List OS Version	uname
Read Help	help
Read a manual	man
Update Repositories	apt update
Upgrade packages	apt upgrade
Create an empty file	touch
List directories and files	tree
List disk space/usage	du	List estimated file usage
List	df	List file system usage
Change permissions	chmod
Add a user	useradd	This is a very basic utility for creating users that only creates the user object
Add a user	adduser	This has more features and will create things such as the home drive
Delete a user	deluser
Create a group	addgroup
Delete a group	delgroup
Modify a user	usermod
Modify a group	groupmod
List processes	ps	Common is: ps aux
Show the time	date
Kill a process	kill
List suspended processes	jobs
Foreground a process	fg
Edit text	vi or nano
Show the current user	whoami
Show the current date and time	date	date -d now
Display the top of a file	head
Display the end of a file	tail
Display a file in real time	tail -f	tail -f access.log
Print the working directory	pwd
Set a variable	set
List logged on users	w
List logged on users with IP details	who
Send a message to all logged on users	wall
Output data to session	echo
Send message to a user	write
Reboot the system	reboot
Power off the system	poweroff
List the contents of a file	cat
Ssh to another system	[email protected]	You can use -I to specify private keys
See running processes and performance information	top

Scheduled Tasks

Tasks in UNIX/LINUX are managed using CRON.

Parsing and Manipulating Text and Files

• cat
• sed
• awk
• grep
• find
• locate
• sort
• uniq

Daemons

A daemon is a background process, these are commonly used for services. E.g.

• SSHD is the Secure Shell Daemon.
• FTPD is the File Transfer Protocol Daemon.

System Service Control

systemctl list-units –type service

systemctl disable [service] –now

systemctl enable [service] –now

Common Networking Commands

• netstat
• ss
• tcpdump
• ufw
• iptables
• ip a (ifconfig on older systems)
• route
• nslookup
• traceroute

Common Linux Virtualisation Solutions/Platforms

• KVM
• Virtual Box
• ProxMox
• Vmware Workstation
• QEMU

Creating a new User

Using adduser we create a new user account. This utility also creates a new group and a home directory.

If we cat /etc/passwd we can see the new user:

If we cat /etc/group

We can see the new group.

If we wanted to add mrr3b00t to root we would run:

To remove the user from the group “root” we would run:

Using “su” we can switch to mRr3b00t:

File Permissions

Now the ACLs on Windows are slightly different. Let’s step through some permissions:

Permission Groups

• Owner
• Group
• All Users/Others

Permission Types

• Read (4)
• Write (2)
• Execute (1)

When we see permissions in Linux we see them in the following format:

[permission flag]rwxrwxrwx 1 owner group

Permission flags can be:

_ = nothing

d = directory

l = symbolic link

SETUID/SETGID and Sticky Bit

s = setuid or setgid (this is shown over [r] rather than in the first character)

t = sticky bit

Permissions are shown as:

Read [r] Write [w] execute[e]

These are important when we consider privilidge escalation. If these bits are set they will look like:

RWSRWSRWT

Or a variation of that pattern with S S and T

You can search for SUID bits using the following command:

find / -perm -u=s -type f 2>/dev/null

This will find any file (-type f) permissions with the SUID bit set and if there’s any errors e.g. access denied it will output them to /dev/null so you don’t have a screen full of errors.

Without going into detail, some binaries are set to run as root because they need high privilege access. Sometimes there are vulnerabilities in the binaries or custom bins/applications that mean you can use abuse these. On this system here’s all the files with SUID bits set.

This can also be set on directories which will affect files created:

https://web.mit.edu/rhel-doc/3/rhel-rg-en-3/s1-users-groups-private-groups.html

There is a whole subject for this but hopefully this is a quick taster on a gotcha and a potential privesc route.

Going back to our example for permissions:

In this example the /root directory is:

A directory shown by: d

The object owner (root) has read, write, and execute

the group (root) has no access.

Other users have no other permissions are set.

In our demo we are going to switch to mRr3b00t:

We touch a file “readme”

Now we switch back to root and create a new user called “QWERTY”

Now as querty we have read access to mRr3b00t’s files.

Why is that?

It’s because OTHER users have the read attribute set.

This won’t apply to all distributions but in Ubuntu this is out of the box defaults.

Let’s fix this (I’m going to set RWX and RW then RWX and RWX so you can see the change)

Here we set:

Owner 7 (rwx)

Group 7 (rw)

Others 0 (nothing)

Now we switch to qwerty and we can’t access mrreb00ts files:

We set the following on mRr3b00ts home directory:

chmod 770 /home/mrr3b00t/

Remember, Owner, Group, Others.

We can change the permissions for all users home directory as follows:

sudo chmod 750 /home/*

If our distro isn’t protecting by default, we can set this in the /etc/adduser.conf but you can look that one up!

Scratching the Surface

Ok so we’ve started to scratch the surface and show some of the areas to consider on Linux systems. I started just writing this as I sometimes do, I’m not even sure why but then I figured people might like to read this. So here is the first bash (haha) at trying to write something. I’m going to just post this on the blog and see if people find it useful. I think there’s a better way to carve stuff like this up into exercises. Key things:

• Google is your friend!
• Man pages are your friends!
• VMs in safe environment are your friends!
• –help is your friend!

Let me know if this is useful. Haha It’s useful for me just writing this stuff down, I do as we know, have a memory like a goldfish! If you think there’s something major I’ve missed or anything that I’ve messed up please shout, I woke up at 0300 and I’m like a zombie!

I also might try making a few “how to’s” for common activities because the subject area is huge and what’s probably more useful for people is. “i want to see how to review the apache access logs and how to configure rotation and log shipping etc.”

Introduction

I come from a heavy Windows background, in fact I started my computer experience on an Amstrad however not long after I was using DOS and then Windows 3.11 for Workgroups. So, I’m a heavy Windows head, I’ve deployed all kinds of services and applications within business environments using common technologies such as:

• CISCO/DELL/HP Networking switches and routers
• ISA/TMG/UAG/Checkpoint firewalls
• Palo Alto Firewalls
• Microsoft Windows Client (Windows 3.11-Windows 11)
• Microsoft Windows Server (NT4 – Windows Server 2022)
• Vmware vSphere/ESXi
• Random Linux Security appliances and VPN devices

One thing that I’ve noticed in my travels so far is that Linux deployments in enterprise environments in the back office/corp nets are often appliance based or “black boxes”. This creates a bit of a fun scenario whereby some system administrators and operations teams aren’t particularly comfortable with using UNIX/Linus systems. So, I thought I’d try and write some content to show how to do common tasks using the command line interface (CLI). This isn’t designed as an indepth guide, this is really just to try and give people a view of some of the things that you will need to be aware of. This isn’t mean’t to be “academic” or replace manuals and technical docs so it’s brief and to the point (as far as that is possible).

Major Changes for Windows People

In Windows many things are case insensitive, such as usernames. In UNIX/Linux the file system is case sensitive. Running Uname will error vs uname which will show the OS version. This means some scenarios are case sensitive (file system access is for sure) but also usernames in some systems are as well.

Distributions

Linux comes in a ton of flavours there is even a Hannah Montanna flavour. Common distibutions are:

Red Had Enterprise Linux (RHEL)

• CentOS
• Debian
• Fedora
• Ubuntu
• MINT
• ARCH

Patching and Backporting

Patching and Upgrading in Linux is a bit bit different than Windows because there’s this thing called Backporting:

https://www.redhat.com/en/blog/what-backporting-and-how-does-it-apply-rhel-and-other-red-hat-products

You need to watch out for this as version based enumeration can lead to false positives when conducting asset enumeration and vulnerability identification through version identification. Backporting is where a security fix or patch is backported into an older version of software. So the banner may say version 7.8 however the security fixes may have been incorporated and deployed (the ones that are in 7.9) so there’s some work to do to check and validate (and also demonstrate) things are patched.

Boot Types

• BIOS (BASIC INPUT OUTPUT SYSTEM)
• UEFI

https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/boot-to-uefi-mode-or-legacy-bios-mode

https://wiki.ubuntu.com/UEFI/SecureBoot

Boot Loaders

The most common boot loader is GRUB.

There are others such as:

• BURG
• LILO
• SYSLINUX

https://en.wikipedia.org/wiki/Comparison_of_boot_loaders

File Systems

The common files systems are:

• EXT2
• EXT3
• EXT4

Other file systems include:

• XFS
• ZFS

There are other systems that can also be used.

A common disk encryption system is LUKS:

https://www.redhat.com/sysadmin/disk-encryption-luks

Volume manaement can be handled by Logical Volume Manager (LVM). LVM allows for dynamic volume management (thin of this a bit like using DYNAMIC disks in Windows).

File System Structure

Unlike Windows GNU/Linux systems use files for everything. There’s no concept of the registry like there is in Windows. In Linux configurations, metadata and data are stored in files. Some systems/application may use databases for configurations e.g., mySQL, postgres etc.

Here’s an example from an Ubuntu system:

The following table is a summary of some common areas:

Path	Purpose	Notes
/	Root
/bin	Binaries for commands (Essential bins)
/dev	Device files/devices
/etc	System wide configuration
/etc/opt	Optional Configurations
/home	Home folders
/lib	Libraries for binaries
/media	Removable Media
/mnt	Temporary File System Mount Points
/opt	Software Packages
/proc	A virtual file system for process and kernel usage
/root	Root users home folder
/run	Run-time variable data for users and daemons
/sbin	System Binaries
/srv
/sys
/tmp	Temporary files
/usr	Read only user data
/usr/bin	Non-essential binaries
/usr/include
/usr/lib32	User Libraries e.g. 32 bit
/usr/local	Host specific data
/usr/sbin	Non essential system binaries
/usr/share	Shared data
/usr/src	Source code and headers
/var	Variable files e.g. log files
/var/cache	Cache
/var/lib/
/var/lock	Lock files
/var/log	Log files e.g. Apache, system etc.
/var/mail	Mailbox data
/var/opt	Optional variable data
/var/run	Variable run time data
/var/spool	Spools for mail and printers
/var/tmp	Temporary files that remain between reboots

Common Shells and Terminal Emulators

• Bash
• Oh My ZSH (ZSH)
• TMUX
• Konsole
• Terminator

Now when using ssh etc. the sessions are not resumable or sharable. So, you will see some cool tools here in the shape of:

• TMUX
• DVTM
• ABDUCO
• SCREEN

Package Managers

In Windows you have the Windows Installer Database and Windows Updates. In modern version of Windows you also have Windows Store and Chocolatey etc.

However, in Linux there is the concept of package managers. Common package managers include:

• DPKG
• RPM

Alongside package managers are dependancy resolvers (thanks Alex for this and other bits!)

• PACMAN
• YUM/DNF
• APT

Common Networking Protocols

• SSH
• SAMBA (Unix SMB/CIFS)
• FTP
• SFTP
• OpenLDAP
• VNC
• RDP

Desktop Window Systems (GUI)

Common guis (Windows Managers) include:

• GNOME
• KDE

There are quite a few of these get your google on!

Key Security Features

• Services
• CHROOT Jails
  • Creates a false root directory for sandboxing
• Pluggable Authenticaiton Modules (PAM)
• Superuser Do/Substitute User Do (SUDO) – Like Windows Runas
• Access Control Lists
• IPTABLES
• UFW (Firewall)
• Audit D
• Malware Detection
  • CLAM AV
• Remote Administration
  • TELNET
  • SSH
  • VNC
  • Remote Desktop Protocol
• SELinux

Common Administration Tasks

I’m using Ubuntu here, some distributions may use slightly different commands e.g. Arch uses PACMAN, Red Hat uses Yum.

Task	command	Notes
Clear the screen	clear	Shortcut CTRL+L
List files	ls
Switch User	su
Run as root/other user	sudo	“super user do” was the traditional name now it’s “substitute user do”
Change directory	cd
Make a directory	mk
Move a file/directory	mv
Remove a file	rm
Remove a directory	rmdir
Copy a file/folder	cp
List OS Version	uname
Read Help	help
Read a manual	man
Update Repositories	apt update
Upgrade packages	apt upgrade
Create an empty file	touch
List directories and files	tree
List disk space/usage	du	List estimated file usage
List	df	List file system usage
Change permissions	chmod
Add a user	useradd	This is a very basic utility for creating users that only creates the user object
Add a user	adduser	This has more features and will create things such as the home drive
Delete a user	deluser
Create a group	addgroup
Delete a group	delgroup
Modify a user	usermod
Modify a group	groupmod
List processes	ps	Common is: ps aux
Show the time	date
Kill a process	kill
List suspended processes	jobs
Foreground a process	fg
Edit text	vi or nano
Show the current user	whoami
Show the current date and time	date	date -d now
Display the top of a file	head
Display the end of a file	tail
Display a file in real time	tail -f	tail -f access.log
Print the working directory	pwd
Set a variable	set
List logged on users	w
List logged on users with IP details	who
Send a message to all logged on users	wall
Output data to session	echo
Send message to a user	write
Reboot the system	reboot
Power off the system	poweroff
List the contents of a file	cat
Ssh to another system	[email protected]	You can use -I to specify private keys
See running processes and performance information	top

Scheduled Tasks

Tasks in UNIX/LINUX are managed using CRON.

Parsing and Manipulating Text and Files

• cat
• sed
• awk
• grep
• find
• locate
• sort
• uniq

Daemons

A daemon is a background process, these are commonly used for services. E.g.

• SSHD is the Secure Shell Daemon.
• FTPD is the File Transfer Protocol Daemon.

System Service Control

systemctl list-units –type service

systemctl disable [service] –now

systemctl enable [service] –now

Common Networking Commands

• netstat
• ss
• tcpdump
• ufw
• iptables
• ip a (ifconfig on older systems)
• route
• nslookup
• traceroute

Common Linux Virtualisation Solutions/Platforms

• KVM
• Virtual Box
• ProxMox
• Vmware Workstation
• QEMU

Creating a new User

Using adduser we create a new user account. This utility also creates a new group and a home directory.

If we cat /etc/passwd we can see the new user:

If we cat /etc/group

We can see the new group.

If we wanted to add mrr3b00t to root we would run:

To remove the user from the group “root” we would run:

Using “su” we can switch to mRr3b00t:

File Permissions

Now the ACLs on Windows are slightly different. Let’s step through some permissions:

Permission Groups

• Owner
• Group
• All Users/Others

Permission Types

• Read (4)
• Write (2)
• Execute (1)

When we see permissions in Linux we see them in the following format:

[permission flag]rwxrwxrwx 1 owner group

Permission flags can be:

_ = nothing

d = directory

l = symbolic link

SETUID/SETGID and Sticky Bit

s = setuid or setgid (this is shown over [r] rather than in the first character)

t = sticky bit

Permissions are shown as:

Read [r] Write [w] execute[e]

These are important when we consider privilidge escalation. If these bits are set they will look like:

RWSRWSRWT

Or a variation of that pattern with S S and T

You can search for SUID bits using the following command:

find / -perm -u=s -type f 2>/dev/null

This will find any file (-type f) permissions with the SUID bit set and if there’s any errors e.g. access denied it will output them to /dev/null so you don’t have a screen full of errors.

Without going into detail, some binaries are set to run as root because they need high privilege access. Sometimes there are vulnerabilities in the binaries or custom bins/applications that mean you can use abuse these. On this system here’s all the files with SUID bits set.

This can also be set on directories which will affect files created:

https://web.mit.edu/rhel-doc/3/rhel-rg-en-3/s1-users-groups-private-groups.html

There is a whole subject for this but hopefully this is a quick taster on a gotcha and a potential privesc route.

Going back to our example for permissions:

In this example the /root directory is:

A directory shown by: d

The object owner (root) has read, write, and execute

the group (root) has no access.

Other users have no other permissions are set.

In our demo we are going to switch to mRr3b00t:

We touch a file “readme”

Now we switch back to root and create a new user called “QWERTY”

Now as querty we have read access to mRr3b00t’s files.

Why is that?

It’s because OTHER users have the read attribute set.

This won’t apply to all distributions but in Ubuntu this is out of the box defaults.

Let’s fix this (I’m going to set RWX and RW then RWX and RWX so you can see the change)

Here we set:

Owner 7 (rwx)

Group 7 (rw)

Others 0 (nothing)

Now we switch to qwerty and we can’t access mrreb00ts files:

We set the following on mRr3b00ts home directory:

chmod 770 /home/mrr3b00t/

Remember, Owner, Group, Others.

We can change the permissions for all users home directory as follows:

sudo chmod 750 /home/*

If our distro isn’t protecting by default, we can set this in the /etc/adduser.conf but you can look that one up!

Scratching the Surface

Ok so we’ve started to scratch the surface and show some of the areas to consider on Linux systems. I started just writing this as I sometimes do, I’m not even sure why but then I figured people might like to read this. So here is the first bash (haha) at trying to write something. I’m going to just post this on the blog and see if people find it useful. I think there’s a better way to carve stuff like this up into exercises. Key things:

• Google is your friend!
• Man pages are your friends!
• VMs in safe environment are your friends!
• –help is your friend!

Let me know if this is useful. Haha It’s useful for me just writing this stuff down, I do as we know, have a memory like a goldfish! If you think there’s something major I’ve missed or anything that I’ve messed up please shout, I woke up at 0300 and I’m like a zombie!

I also might try making a few “how to’s” for common activities because the subject area is huge and what’s probably more useful for people is. “i want to see how to review the apache access logs and how to configure rotation and log shipping etc.”
